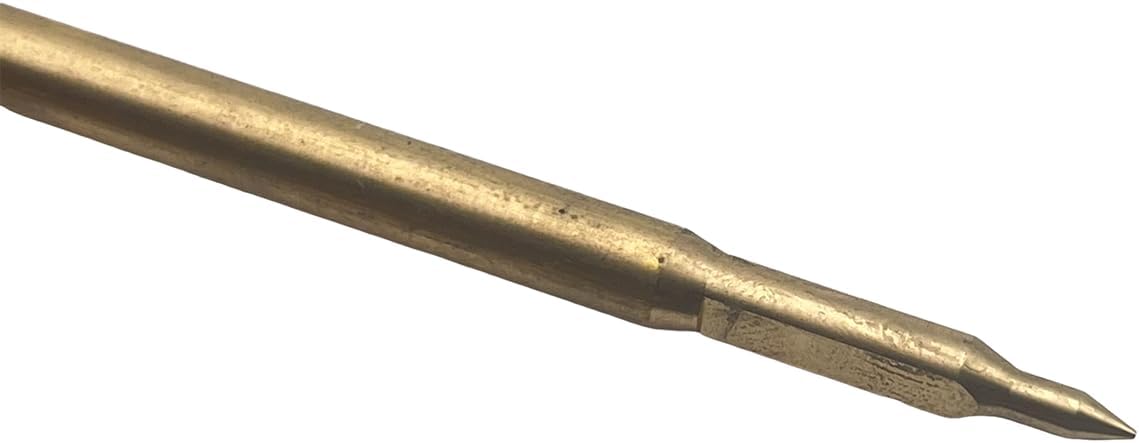

No More Pivot Frustration! Brass Alignment Tool for Perfect B-enchmade Rebuilds

Insert & Align Gently slide the tapered tip of the tool (3.2mm or 2.8mm) into the pivot hole. Rotate until the tool’s flat side matches the D-shaped pivot hole, ensuring perfect alignment.

• Insert & Align Gently slide the tapered tip of the tool (3.2mm or 2.8mm) into the pivot hole. Rotate until the tool’s flat side matches the D-shaped pivot hole, ensuring perfect alignment.
• Clearance Check Visually confirm even gaps between washers, blade, and scales before proceeding. If resistance occurs, rock the tool slightly or rotate the handle to help components settle.
• Release Spring Tension Pull back the tool’s shaft to relieve Axis lock pressure, allowing smooth insertion. Never force the tool—gentle wiggling aids alignment without damaging parts.
• Secure Components Once fully inserted, release the shaft; spring tension locks everything in place. The tool’s tapered shoulder and precise fit keep washers/blade centered during reassembly.
• Install Pivot Pin With all parts aligned, slide the pivot pin through the tool’s guide hole. Remove the tool and tighten screws for a play-free, drop-shut action.
